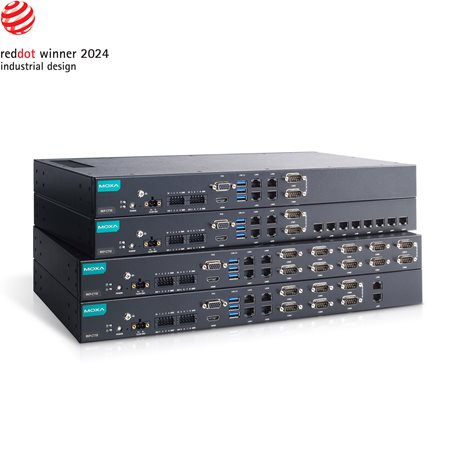

The RKP-C110 rackmount computers are powered by 11th Gen Intel® Celeron®, or Intel® Core™ i3, i5, or i7 processor. The computers come with a rich set of interface options including up to 12 Gigabit Ethernet ports, 10 software-selectable RS-232/422/485 serial ports, 8 digital inputs and 8 digital outputs, and two kinds of power input options, 12/24 VDC and 100 to 240 VAC/VDC (power module). The communication interfaces are all located on the front panel for enabling easy access and convenient expansion for industrial applications. Two hand-rotated 2.5” SSD storages and an outer replaceable RTC battery design deliver a reliable, durable, and versatile platform for a more user-friendly option.
Designed as 1U standard form factor fanless rackmount computers with an operating temperature range of -30 to 60°C and a build-in TPM 2.0 module, the RKP-C110 computers are ideal as reliable and secure computing platforms for industrial applications in extreme operating environments.
Appearance
Front View
RKP-C110-C1-T/C3-T/C5-T/C7-T/C1-T-Win10/C3-T-Win10/C5-T-Win10/C7-T-Win10 Models
RKP-C110-C1-8L-T/C3-8L-T/C5-8L-T/C7-8L-T Models
RKP-C110-C1-8C-T/C3-8C-T/C5-8C-T/C7-8C-T Models
RKP-C110-C1-2L4C-T/C3-2L4C-T/C5-2L4C-T/C7-2L4C-T Models
RKP-C110-C1-2HV-T/C3-2HV-T/C5-2HV-T/C7-2HV-T Models
RearView
RKP-C110-C1-2HV-T/C3-2HV-T/C5-2HV-T/C7-2HV-T Models
All Other Models
