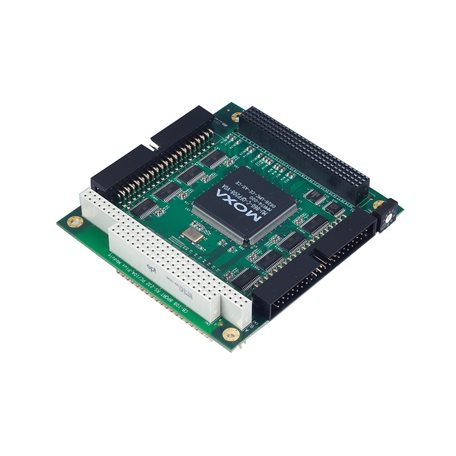

The CB-108 PC/104-Plus modules come with 8 RS-232 ports, and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications. The CB-108 modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.
CB-108 Series
Roll over image to zoom in
8-port RS-232 PC/104-Plus modules
Features and Benefits
921.6 kbps maximum baudrate for fast data transmission
On-chip hardware and software flow control
Onboard Tx and Rx LED indicators for each port
Supports Windows, Windows CE 5.0/6.0, and Windows XP Embedded operating systems
Wide-temperature model available for -40 to 85°C environments
Easy maintenance with built-in LEDs and management software
