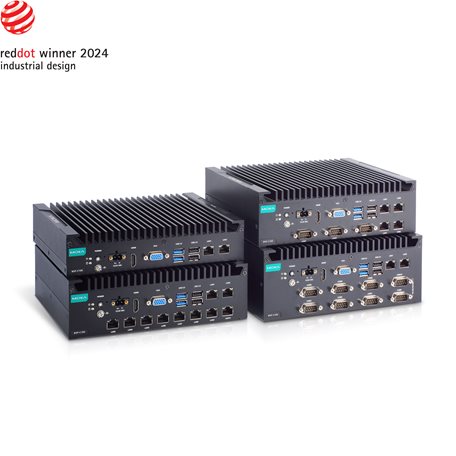

The BXP-C100 wall-mount computers are powered by a 11th Gen Intel® Celeron® or Intel® Core™i5, or i7 processor. The computers come with a rich set of interface options including up to 10 software-selectable RS-232/422/485 serial ports, up to 10 gigabit Ethernet ports, 4 digital inputs, and 4 digital outputs. The communication interfaces are located on the front and rear sides of the product, enabling easy access and expansion for industrial applications. A dual-storage design that includes CFast and SD slots enables easy storage expansion. The unique battery fastener cover design for the battery slot secures the battery in place and ensures stability in all operating environments.
The BXP-C100 compact wall-mountable computers come in a fanless design and can withstand a temperature range of -30 to 60°C, making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-C100 Series is an intelligent computing solution that fulfills both OT and IT requirements in industrial environments.
Appearance
Front View
BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10 Models
BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T Models
BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T Models
BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T Models
Rear View
BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10 Models
BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T Models
BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T Models
BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T Models
